TIANKONGRC TD-6635MG 35KG 4.8-8.4V Metal Gear Digital Servo Motor for RC Robot Smart Car

Name: TIANKONGRC TD6635MG 35KG 4884V Metal Gear Digital Servo Motor for RC Robot Smart Car
Brand: TIANKONGRC
Price: 8.8 USD

Wholesale TIANKONGRC TD-6635MG 35KG 4.8-8.4V Metal Gear Digital Servo Motor for RC Robot Smart Car from china suppliers

Brand Name : TIANKONGRC

Model Number : TD-6635MG

Certification : CE&ROHS

Place of Origin : China

MOQ : 100PCS

Price : 8.8USD

Payment Terms : Paypal,T/T, Western Union, MoneyGram

Supply Ability : 10000PCS/Month

Delivery Time : 3-5 days for sample orders or according your order quantity

Packaging Details : Color Box

Torque : 35kg.cm/4.8V, 37kg.cm/8.4V

Rotational speed : 0.26 sec/61°(4.8V), 0.22 sec/61°(8.4V)

Dimension : 40.0*20.5*40.6mm

Weight : 60g±5g

Contact Now

Specification:
Size: 40*20.5*40.6mm
Operation voltage: 4.8V-8.4V
Horn gear spline: 25T 5.9mm
No load speed: 0.26 sec/61°(4.8V), 0.22 sec/61°(8.4V)
Running current(at no load): 140mA/4.8V, 200mA/8.4V
Peak stall torque: 35kg.cm/4.8V, 37kg.cm/8.4V
Stall current: 2600mA/4.8V, 3400mA/8.4V

Command signal: Pulse width modification

Pulse width range: 500-2500usec

Stop point: 1500usec

Application :

TIANKONGRC TD-6635MG 35KG 4.8-8.4V Metal Gear Digital Servo Motor for RC Robot Smart Car

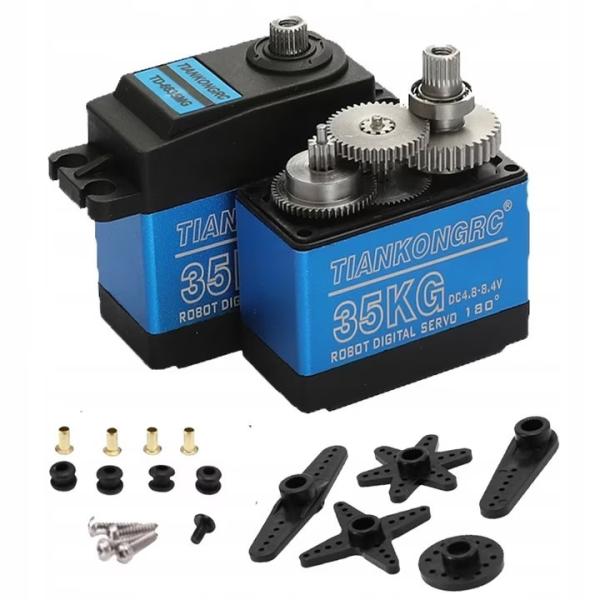

TIANKONGRC TD-6635MG 35KG 4.8-8.4V Metal Gear Digital Servo Motor for RC Robot Smart Car Images
